- LiFePO4 12V 15Ah Battery

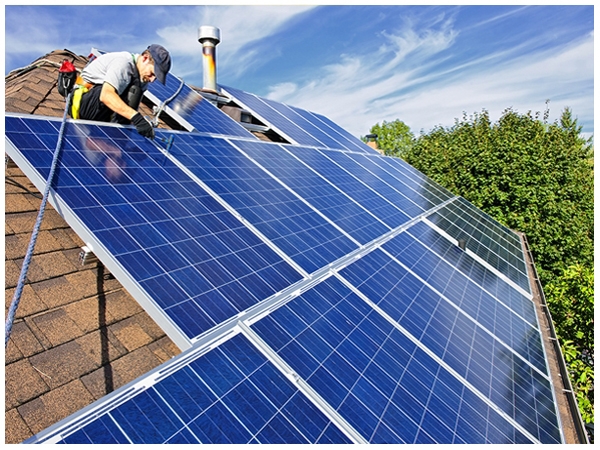

- Application: Battery Work With Solar Panels

- Need PCM Fitted

- Max Dimension: 120x150x80 mm

- Working Current: 5A

- Peak Working Current: 10A, 1mS

- Wires: 500mm

- No need connectors

- Expected Cycle Life: 2000times

- Sample goes firstly,then quantity needs: 1000 units/month

Battery Solution:

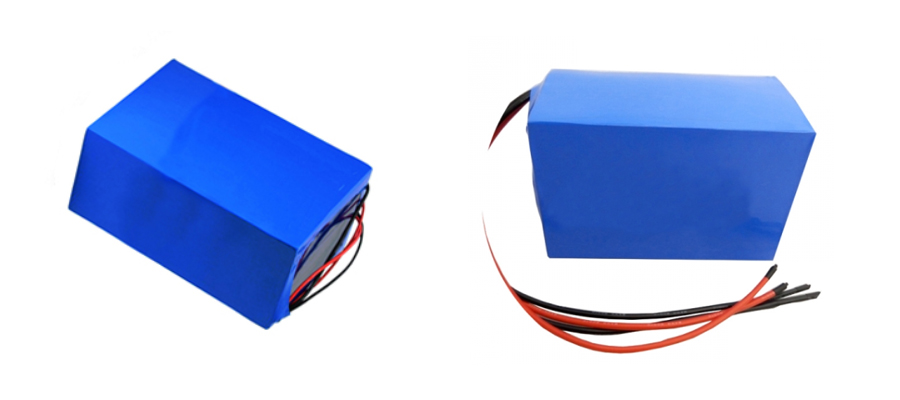

- Item: LiFePO4 4S5P 12V 15000mAh battery pack with PCM protection circuit board + Wires (red and black wires)

- Estimated Dimension: 113.0 mm x 141.50 mm x 78.50 (MAX)

- With Resin board + in Blue PVC

- Configuration: Li-ion 26650 3.2V 3000mAh - 4S5P - 4 Sets in series,5 Cells in parallel - total 20 cells

- With PCM protection circuit board (Overdischarge,Overcharge,Short Circuit etc...)

- With Two Wires (red and black wires) for charging and discharging

- Length of Charging/Discharging cables: 500 +/-5 mm

- Wire Gauge: engineers team recommend according to the charging and discharging current

- Nominal Voltage: 12V

- Nominal Capacity: 15000mAh

- Operational Voltage: 10.0V to 14.60V

- Charge Limited Voltage: 14.60V

- Discharge Cut-off Voltage: 10.0V

- Standard Charge Current: 0.2C /3000 mA

- Max Charge Current: 6A

- Max Constant Discharge Current: 6A

- Peak Discharge Current: 10A,1mS

- Charge Temperature: 0℃ to 45℃

- Discharge Temperature: -20℃ to 65℃

- Estimated G.W: about 1.90Kg
