- Item: Lithium ion 7.4V 10.4Ah Rechargeable Battery

- Application: Battery Work for Waterproof LED Lamp

- With PCM protection circuit

- Dimension:  80.0 mm x 40.50 mm x 73.50 mm

- Working Current: 2A

- Peak Working Current: 4A,2mS

- Wires: 50 mm

- JST or DC connector

- Expected Cycle Life: 500times

- Required samples: 5pcs+,then quantity goes up to : 10,000 units/month

Battery Solution:

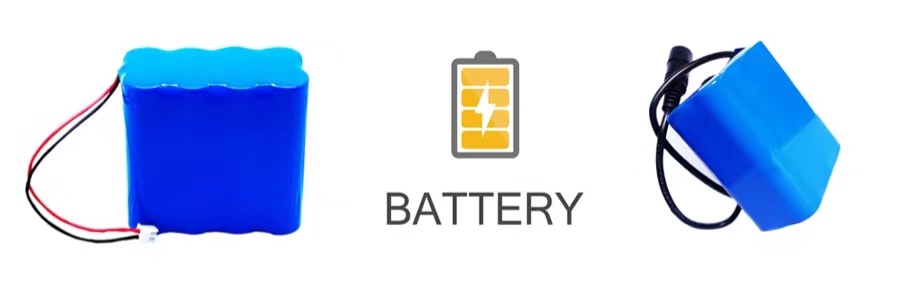

- Item: Lithium ion 7.4V 10.4Ah Battery pack

- Estimated Dimension:76.0 mm x 39.50 mm x 70.0 mm(MAX)

- With Blue PVC

- With JST or DC connector

- Configuration: Li-ion 18650 3.7V 2600mAh - 2S4P

- With PCM protection circuit board (Overdischarge,Overcharge,Short Circuit etc...)

- With 2 Wires (red and black wires) for charging and discharging

- Length of Charging/Discharging cables: 50 +/-3 mm

- Wire Gauge: engineers team recommend according to the charging and discharging current

- Nominal Voltage: 7.4V

- Nominal Capacity: 10400mAh

- Operational Voltage: 6.0V to 8.4V

- Charge Limited Voltage: 8.4V (avoid charge over 4.20V/cell)

- Discharge Cut-off Voltage: 6.0V(never discharge lower than 3.0V/cell)

- Standard Charge Current: 0.2C/2080mA

- Fast Charge Current: 4A

- Max Constant Discharge Current: 2A

- Peak Discharge Current: 4A,2mS

- Charge Temperature: 0℃ to 45℃

- Discharge Temperature: -20℃ to 60℃

- Estimated G.W: 390.0g
