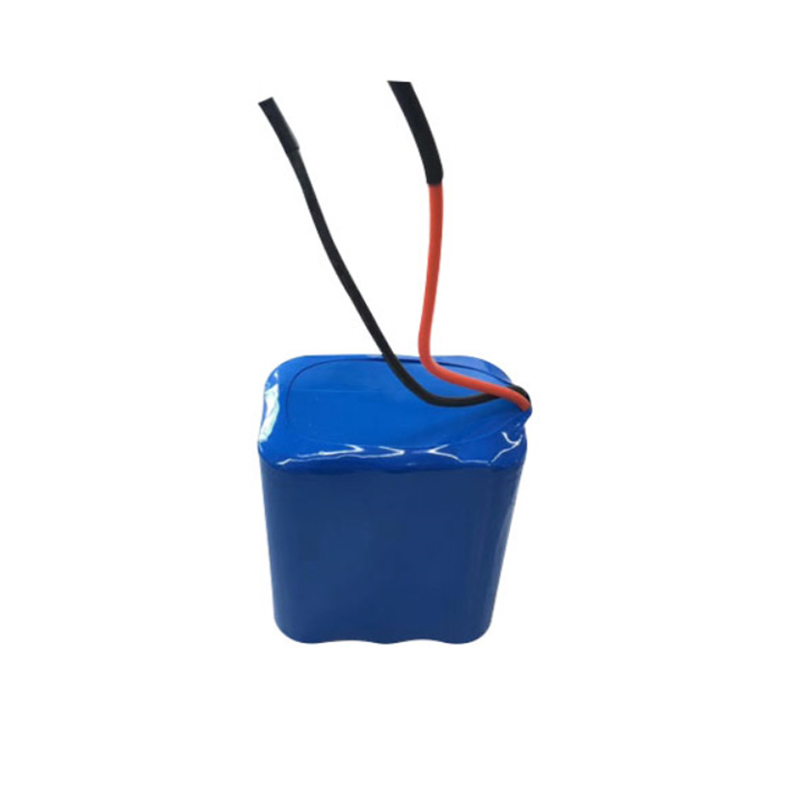

1.Product Parameter (Specification)

No.	Items	Specification
1	Nominal Voltage	7.4V
2	Nominal Capacity	9000mAh	66.6Wh
3	Cell Model	18650-3000mAh
4	Cell Configuration	2S 3P
5	Standard Discharge Current	1800mA	0.2C
6	Maximum Continuous Current Draw *	5000mA	0.56C
7	Maximum Burst Current Draw *	8000mA	0.89C
8	Standard Charge Current	1800mA	0.2C
9	Maximum Charge Current	4500mA	0.5C
10	Minimum Safe Voltage	5.5V	2.50V/Cell
11	Fully charge voltage(FC)/Charge cut-off voltage	8.40V	4.20V/Cell
12	Cycle Life	≥1000 times
13	Charging method	Constant Current,Constant Voltage
14	Discharge Connector	Optional
15	Charge Connector	Optional
16	Working Temperature	Charging: 0 to + 45℃/Discharging:-20 to + 60℃
17	Physical (Maximum Size):
18	Length x Width x Height	38x56x70mm or OEM
19	Weight	305.0g

2. Optional Li-ion Cell Types

Model	Nominal Voltage (V)	Nominal Capacity (mAh)	Working Temperature (℃)	Maximum Charge Voltage (V)	Discharge Cut-off Voltage (V)	Battery Weight (Approx.)	Measurement (Φ*H)
14500	3.7V	800mAh	-20℃~+60℃	4.2V	2.75V	18.0g	14x50mm
14650	3.7V	1100mAh	-20℃~+60℃	4.2V	2.75V	25.0g	14x65mm
18350	3.7V	900mAh	-20℃~+60℃	4.2V	2.75V	19.0g	18x35mm
18500	3.7V	1500mAh	-20℃~+60℃	4.2V	2.75V	33.0g	18x50mm
18650	3.7V	2000mAh	-40℃~+85℃	4.2V	2.75V	42.0g	18x65mm
18650	3.7V	2200mAh	-20℃~+60℃	4.2V	2.75V	43.0g	18x65mm
18650	3.7V	2500mAh	-20℃~+60℃	4.2V	2.75V	44.5g	18x65mm
18650	3.7V	2600mAh	-20℃~+60℃	4.2V	2.75V	45.8g	18x65mm
18650	3.7V	3000mAh	-20℃~+60℃	4.2V	2.75V	48.0g	18x65mm
21700	3.7V	4200mAh	-20℃~+60℃	4.2V	2.75V	67.0g	21x70mm
26650	3.7V	5000mAh	-20℃~+60℃	4.2V	2.75V	85.0g	26x65mm
32650	3.7V	6500mAh	-20℃~+60℃	4.2V	2.75V	132.0g	32x65mm

3. Feature And Application
√ High energy with high voltage
√ Green energy and pollution-free
√ Customize dimension according to your needs
√ Friendly environmentally
√ Wide operating temperature: -20℃ to +60℃,or -40℃~+85℃
√ Safety and reliable
√ Long cycle lіfe: 80% DOD after 500 times
√ Expected cycle life of a Li-ion in application is about 1,000+ times
√ No memory efficiency,discharge or charge at any time

Application :
POS Machine,Underwater ROV,E-scooter,Headlight,Smart Wearable Devices,GPS Tracker,Electric Toys,Beauty Instruments,Aromatherapy Machines,
LED lights,Quadcopters, Drones ,etc.

We have the above certification to help customer to win global market:
North America Certificate: UL
Europe Certificate: CE/ROHS/REACH
Asia & Australia Certificate: PSE/KC/CQC/BIS
Global Certificate: CB/IEC62133/UN38.3/MSDS
