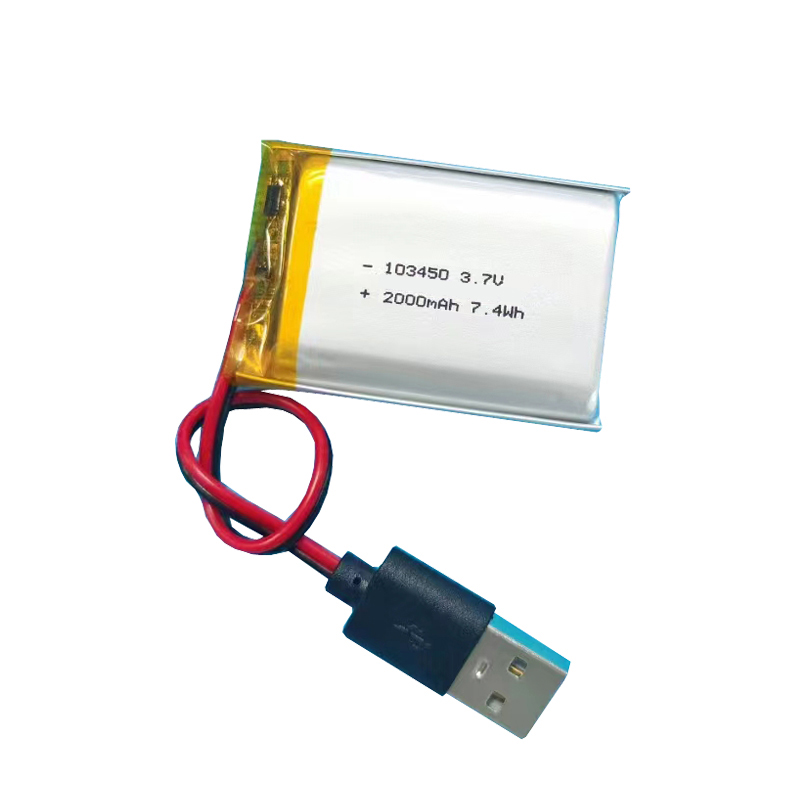

1.Product Parameter (Specification)
|
| No. |
Items |
Specification |
| 1 |
Nominal Voltage |
3.7V |
| 2 |
Nominal Capacity |
2000mAh |
7.4Wh |
| 3 |
Cell Model |
103450 |
| 4 |
Cell Configuration |
1 Cell |
| 5 |
Standard Discharge Current |
400mA |
0.2C |
| 6 |
Maximum Continuous Current Draw * |
1200mA |
0.6C |
| 7 |
Maximum Burst Current Draw * |
3000mA for 1.5mS |
1.5C |
| 8 |
Standard Charge Current |
400mA |
0.2C |
| 9 |
Maximum Charge Current |
1000mA |
0.5C |
| 10 |
Minimum Safe Voltage |
2.75V |
2.75V/Cell |
| 11 |
Fully charge voltage(FC)/Charge cut-off voltage |
4.20V |
4.20V/Cell |
| 12 |
Cycle Life |
1000 Cycels |
| 13 |
Charging method |
Constant Current,Constant Voltage |
| 14 |
Discharge Connector |
With USB Connector or Optional |
| 15 |
Charge Connector |
With USB Connector or Optional |
| 16 |
Working Temperature |
Charging: 0 to + 45℃/Discharging:-20 to + 60℃ |
| 17 |
Physical (Maximum Size) |
| 18 |
Length |
52.0mm |
| 19 |
Width |
34.0mm |
| 20 |
Thickness |
10.50mm |
| 21 |
Weight |
40.0g |
2.Production Process
3.Deliver,Shipping And Serving
Production Time:
- Bulk Order: about 30-35 days after confirmed the order is confirmed(exclude Chinese holidays)
- For an urgent order, we can do it more faster, please send email to negotiate
Sample Time:
- Sample: about 10 to 15 business days after the order is confirmed
Please send email for samples,we will ship the samples to you Asap!
Delivery Method:
- By Sea to Sea Port (DDU/DDP service is optional)
- By Air to Airport (DDU/DDP service is optional)
- Via International Express(UPS,DHL,FedEx,TNT) to door
Applications:
Smart Wearable Products,MP3/MP4/MP5,Bluetooth headset,Bluetooth speaker, Auto electronics, GPS, Forehead Thermometer,Animal Trackers,Smartphone,
Digital products, Portable DVD, Tablet PC, E-book, POS terminal, PDA, Power bank, RC toys, Medical device, LED Candle Light,Beauty Machine,
Smart Sensors,Anti-lost Pet Products,etc.
We have the above certification to help customer to win global market:
North America Certificate: UL
Europe Certificate: CE/ROHS/REACH
Asia & Australia Certificate: PSE/KC/CQC/BIS
Global Certificate: CB/IEC62133/UN38.3/MSDS
If you have any questions,please freely email us for helps.
