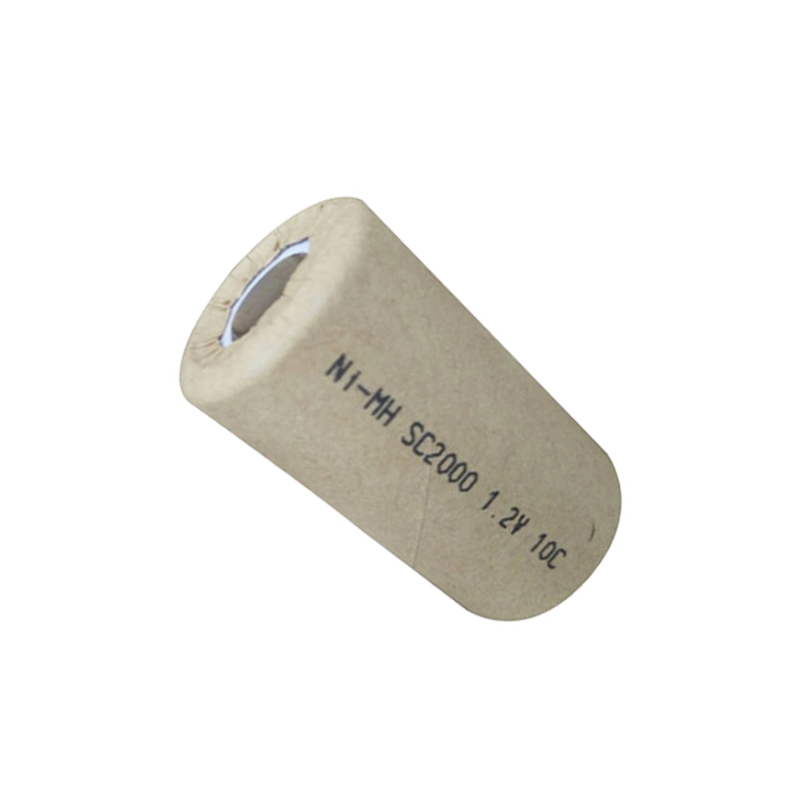

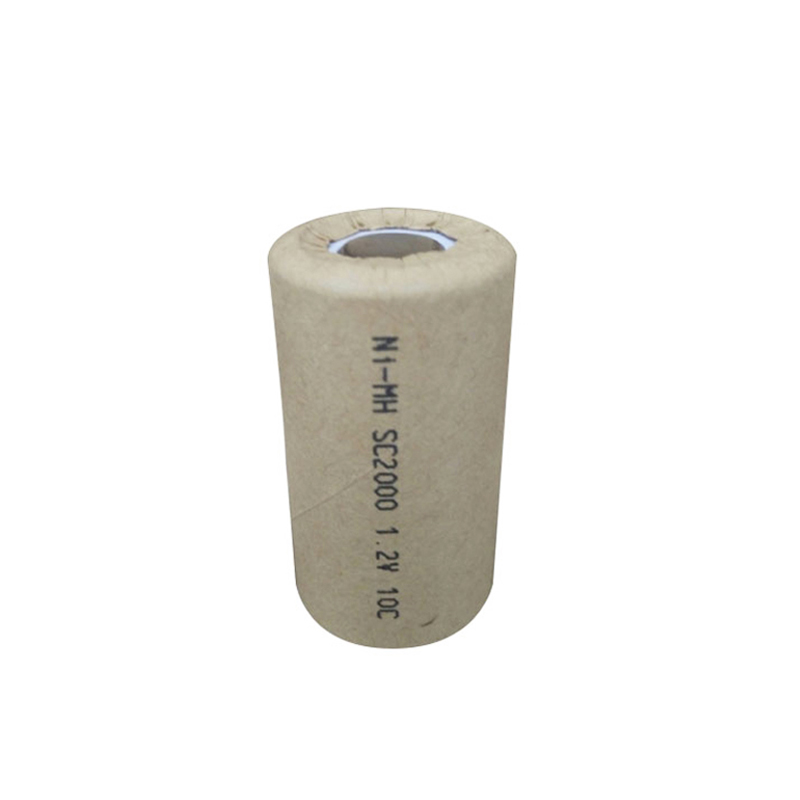

10C NiMh SC 1.2V 2000mAh Cell
Application: for Power Tools
Customized available, OEM & ODM are welcomed.
Cell Count: 1 pcs
Cell Type: Ni-MH SC 1.2V 2000mAh 10C

Features:

1. Long Cycle Life: > 500 charge and discharge cycles,which makes it extremely economical, and provides an expected life for the device that it is used.
2. Economical Friendly: Friendly to the environment: No Cadmium,Mercury effects,Lead.
3. With low internal resistance.
4. Storage and range of applications: with long storage life with few limiting conditions and permit to use in a wide range of applications.
5. Good quality and Safety: all of them are A+ Grade Cells, full inspection before assembling and shipping
1.Product Parameter (Specification)
No. Items Specification
1 Nominal Voltage 1.2V
2 Nominal Capacity 2000mAh 2.4Wh
3 Cell Model Ni-MH SC 2000mAh 1.2V 10C
4 Cell Configuration 1 Single Cell
5 Standard Discharge Current 400mA 0.2C
6 Fast Discharge Current Draw * 1000mA 0.5C
7 Max Continuous Discharge Current Draw * 20A 10C
8 Standard Charge Current 200mA 0.1C
9 Maximum Charge Current 1000mA/2000mA 0.5C/1.0C
10 Minimum Safe Voltage 1.0V 1.0V/Cell
11 Fully charge voltage(FC)/Charge cut-off voltage 1.4V 1.4V/Cell
12 Cycle Life ≥500 times
13 Charging method Constant Current,Constant Voltage
14 Discharge Connector With Cables only or Optional
15 Charge Connector Withi Cables only or Optional
16 Working Temperature Charging: 0 to + 45℃/Discharging:-20 to + 60℃ or -20 to + 70℃
17 Physical (Maximum Size)
18 Diameter 23.0mm
19 Height 43.0mm
20 PVC or Paper Wrap Optional

2.Optional Cells Model
Type Size Capacity Dimension(mm) Standard charge
(mAh) Height Diameter Current Time (h)
(mA)
A 1/3A 400 16.3(0/-1.0) 17.0(0/-0.7) 40 16
1/2A 600 27.4(0/-1.0) 17.0(0/-0.7) 60 16
2/3A 1000 28.5(0/-1.5) 17.0(0/-0.7) 100 16
4/5A 1200 43.0(0/-1.5) 17.0(0/-0.7) 120 16
4/5A 1800 43.0(0/-1.5) 17.0(0/-0.7) 180 16
4/5A 2000 43.0(0/-1.5) 17.0(0/-0.7) 200 16
A 1700 50.0(0/-1.5) 17.0(0/-0.7) 170 16
A 2000 50.0(0/-1.5) 17.0(0/-0.7) 200 16
A 2200 50.0(0/-1.5) 17.0(0/-0.7) 220 16
A 2300 50.0(0/-1.5) 17.0(0/-0.7) 230 16
A 2400 50.0(0/-1.5) 17.0(0/-0.7) 240 16
A 2500 50.0(0/-1.5) 17.0(0/-0.7) 250 16
4/3A 2800 67.0(0/-2.0) 17.0(0/-0.7) 280 16
4/3A 3000 67.0(0/-2.0) 17.0(0/-0.7) 300 16
4/3A 3300 67.0(0/-2.0) 17.0(0/-0.7) 330 16
4/3A 3500 67.0(0/-2.0) 17.0(0/-0.7) 350 16
4/3A 3600 67.0(0/-2.0) 17.0(0/-0.7) 360 16
4/3A 3700 67.0(0/-2.0) 17.0(0/-0.7) 370 16
4/3A 3800 67.0(0/-2.0) 17.0(0/-0.7) 380 16
18670 3000 67.0(0/-2.0) 18.3(0/-0.7) 300 16
18670 3500 67.0(0/-2.0) 18.3(0/-0.7) 350 16
18670 3900 67.0(0/-2.0) 18.3(0/-0.7) 390 16
18670 4100 67.0(0/-2.0) 18.3(0/-0.7) 410 16
18670 4200 67.0(0/-2.0) 18.3(0/-0.7) 420 16
18670 4500 67.0(0/-2.0) 18.3(0/-0.7) 450 16
AA 1/3AA 180 16.7(0/-1.0) 14.5(0/-0.7) 18 16
1/3AA 300 16.7(0/-1.0) 14.5(0/-0.7) 30 16
1/2AA 500 24.6(0/-1.5) 14.5(0/-0.7) 50 16
2/3AA 300 28.5(0/-1.5) 14.5(0/-0.7) 30 16
2/3AA 400 28.5(0/-1.5) 14.5(0/-0.7) 40 16
2/3AA 600 28.5(0/-1.5) 14.5(0/-0.7) 60 16
4/5AA 1100 43.0(0/-1.5) 14.5(0/-0.7) 110 16
4/5AA 1200 43.0(0/-1.5) 14.5(0/-0.7) 120 16
4/5AA 1300 43.0(0/-1.5) 14.5(0/-0.7) 130 16
AA 500 49.0(0/-1.5) 14.5(0/-0.7) 50 16
AA 600 49.0(0/-1.5) 14.5(0/-0.7) 60 16
AA 800 49.0(0/-1.5) 14.5(0/-0.7) 80 16
AA 1000 49.0(0/-1.5) 14.5(0/-0.7) 100 16
AA 1400 49.0(0/-1.5) 14.5(0/-0.7) 140 16
AA 1500 49.0(0/-1.5) 14.5(0/-0.7) 150 16
AA 1600 49.0(0/-1.5) 14.5(0/-0.7) 160 16
AA 1800 49.0(0/-1.5) 14.5(0/-0.7) 180 16
AA 2000 50.5(0/-1.5) 14.5(0/-0.7) 200 16
AA 2200 50.5(0/-1.5) 14.5(0/-0.7) 220 16
AA 2300 50.5(0/-1.5) 14.5(0/-0.7) 230 16
AA 2400 50.5(0/-1.5) 14.5(0/-0.7) 240 16
AA 2500 50.5(0/-1.5) 14.5(0/-0.7) 250 16
4/3AA 1800 65.5(0/-2.0) 14.5(0/-0.7) 180 16
4/3AA 2000 65.5(0/-2.0) 14.5(0/-0.7) 200 16
4/3AA 2100 65.5(0/-2.0) 14.5(0/-0.7) 210 16
AAA 1/3AAA 210 14.6(0/-0.7) 10.5(0/-0.7) 21 16
1/3AAA 300 14.6(0/-0.7) 10.5(0/-0.7) 30 16
2/3AAA 400 28.5(0/-1.5) 10.5(0/-0.7) 40 16
2/3AAA 650 28.5(0/-1.5) 10.5(0/-0.7) 65 16
4/5AAA 480 37.5(0/-1.5) 10.5(0/-0.7) 48 16
AAA 500 43.0(0/-1.5) 10.5(0/-0.7) 50 16
AAA 600 43.0(0/-1.5) 10.5(0/-0.7) 60 16
AAA 700 43.0(0/-1.5) 10.5(0/-0.7) 70 16
AAA 800 43.0(0/-1.5) 10.5(0/-0.7) 80 16
AAA 900 43.0(0/-1.5) 10.5(0/-0.7) 90 16
AAA 1000 43.0(0/-1.5) 10.5(0/-0.7) 100 16
5/4AAA 800 50.5(0/-1.5) 10.5(0/-0.7) 80 16
4/3AAA 1000 65.5(0/-2.0) 10.5(0/-0.7) 100 16
SC 4/5 SC 1800 32.5(0/-1.5) 23.0(0/-1.0) 180 16
4/5 SC 2000 32.5(0/-1.5) 23.0(0/-1.0) 200 16
SC 2200 43.0(0/-1.5) 23.0(0/-1.0) 220 16
SC 2500 43.0(0/-1.5) 23.0(0/-1.0) 250 16
SC 2800 43.0(0/-1.5) 23.0(0/-1.0) 280 16
SC 3000 43.0(0/-1.5) 23.0(0/-1.0) 300 16
C C 4000 50.0(0/-2.0) 25.8(0/-1.0) 400 16
C 4500 50.0(0/-2.0) 25.8(0/-1.0) 450 16
C 5000 50.0(0/-2.0) 25.8(0/-1.0) 500 16
D 1/2D 4000 36.5(0/-1.5) 33.0(0/-1.0) 400 16
D 5000 61.5(0/-2.0) 33.0(0/-1.0) 500 16
D 8000 61.5(0/-2.0) 33.0(0/-1.0) 800 16
D 10000 61.5(0/-2.0) 33.0(0/-1.0) 1000 16
F 4/3D 11000 89.0(0/-2.1) 33.0(0/-1.0) 1100 16
4/3D 13000 89.0(0/-2.1) 33.0(0/-1.0) 1300 16
4/3D 14000 89.0(0/-2.1) 33.0(0/-1.0) 1400 16
4/3D 15000 89.0(0/-2.1) 33.0(0/-1.0) 1500 16

3.Features
Green energy and pollution-free
Customize dimension according to your needs
Friendly environmentally
Wide operating temperature: -20℃ to +60℃,or -20℃ to +70℃
Safety and reliable
No memory efficiency,discharge or charge at any time

4.Qualification
We have the above certification to help customer to win global market:
North America Certificate: UL
Europe Certificate: CE/ROHS/REACH
Asia & Australia Certificate: PSE/KC/CQC/BIS
Global Certificate: CB/IEC62133/UN38.3/MSDS
If you have any questions,please freely email us for helps.



5.Deliver,Shipping And Serving
Production Time:
- Bulk Order: about 20-25 business days after confirmed the order is confirmed
- For an urgent order, we can do it more faster, please send email to negotiate

Sample Time:
- Sample: about 10 to 15 business days after the order is confirmed
Please send email for samples,we will ship the samples to you Asap!
Delivery Method: - By Sea to Sea Port (DDU/DDP service is available)
- By Air to Airport (DDU/DDP service is available)
- Via International Express(UPS,DHL,FedEx,TNT) to door
