| Technical Parameters: |
|||
| Product Name |

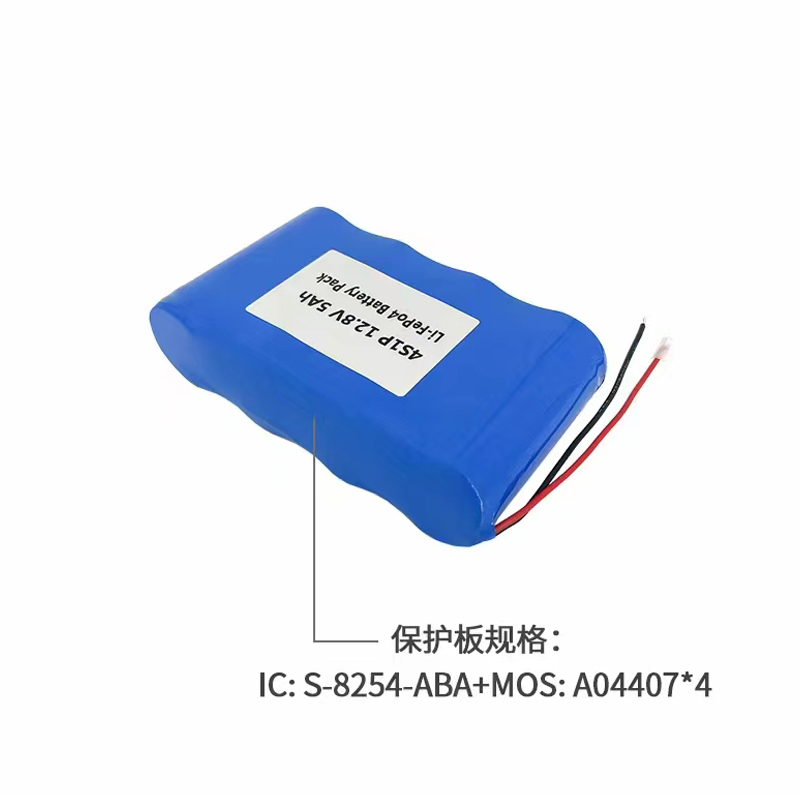

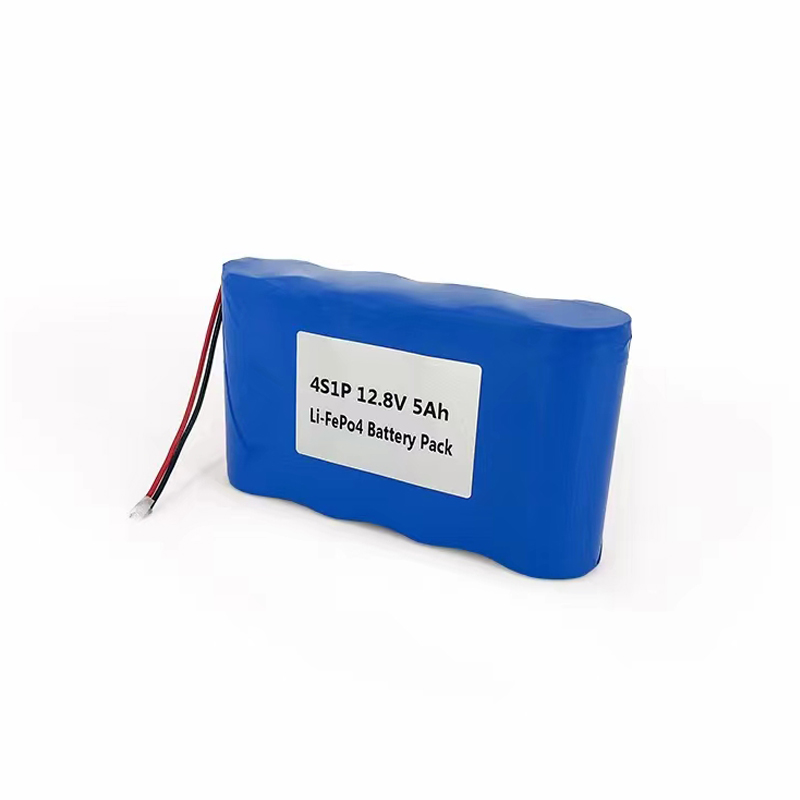

LiFePO4 12.8V 5Ah Lightings Batteries |
||
| Cell Type |
IFR32700 5Ah |
Material |
LiFePO4 |
| Charge Protect Voltage |
14.6V |
Discharge Cut-off Voltage |
9.2V |
| Voltage Range |
9.2V~14.6V |
Length of Cables |
50mm or Customized |
| Charge Connector |
Wire leads or Flexible |
Discharge Connector |
Wire leads or Customized |
| Standard Charge Current |
1A |
Max Charge Current |
5A |
| Continuous Discharge Current |
1A |
Peak Discharge Current |
5A |
| Cycle life |
2000 Times @ 80% DOD |
Dimension(MAX) |
33 x 130 x 75mm or Customized |
| Pre-wired |
Red=Positive; Black=Negative |
Certification |
UL,CE,RoHs,UN38.3,MSDS,CB,… |
| Charge Method |
CC/CV |
Warranty |
1 Year |
| Application |
for Lightings |
Weight |
580 g |
| Working Temperature |
Charge Temperature: 0℃ to 45℃ |
||
| Discharge Current: -10℃ to 80℃ |
|||
| Packing |
Professional LiFePO4 Battery Safe Package under IATA Shipping Request. Each Carton less than 10KGS |
||
