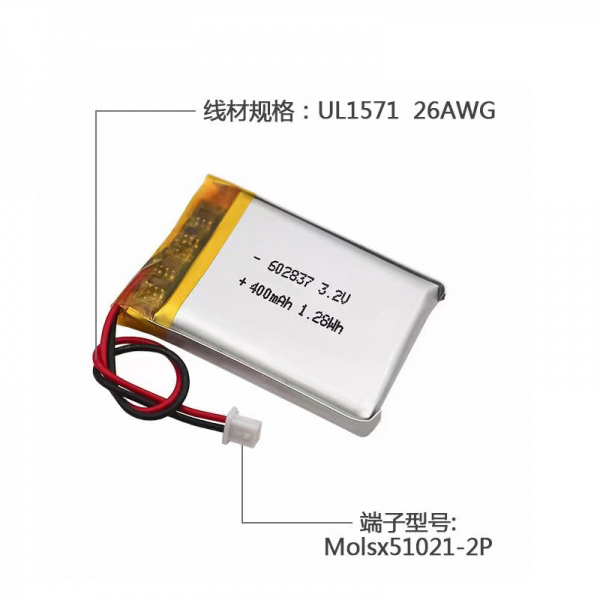

| 3.2V 400mAh 602837 LiFePO4 Battery |
| No. |
Items |
Specification |
| 1 |
Nominal Voltage |
3.2V |
| 2 |
Nominal Capacity |
400mAh |
1.28Wh |
| 3 |
Cell Model |
602837 |
| 4 |
Cell Configuration |
1 Cell |
| 5 |
Standard Discharge Current |
80mA |
0.2C |
| 6 |
Maximum Continuous Current Draw * |
500mA |
1.25C |
| 7 |
Maximum Burst Current Draw * |
600mA for 50s |
1.5C |
| 8 |
Standard Charge Current |
80mA |
0.2C |
| 9 |
Maximum Charge Current |
200mA |
0.5C |
| 10 |
Minimum Safe Voltage |
2.50V |
2.30V/Cell |
| 11 |
Fully charge voltage(FC)/Charge cut-off voltage |
3.65V |
3.65V/Cell |
| 12 |
Cycle Life* |
≥2000 times |
| 13 |
Charging method |
Constant Current,Constant Voltage |
| 14 |
Discharge Connector |
Molex51021-2P/Customized |
| 15 |
Charge Connector |
Molex51021-2P/Customized |
| 16 |
Working Temperature |
Charging: 0 to + 45℃/Discharging:-20 to + 60℃ |
| 17 |
Physical (Maximum Size) |
| 18 |
Length |
39.0mm |
| 19 |
Width |
28.0mm |
| 20 |
Thickness |
6.10mm |
| 21 |
Weight |
8.0g |
1. OEM Development Process
2. Feature And Application
√ High Energy Density: the volume and weight of LiFePO4 battery are 1/3 of the same capacity Lead-acid battery.
√ Long Cycle Life: with more than 2,000 times cycle life,much more longer than Lead-acid battery
√ More Safety: battery pass the crush test,nail penetration test,short circuit test etc. Safety is much better than NMC battery
√ Low Temperature Performance: use special cod resistant additives,with good discharge performance in low temperature,-20℃ can discharge as normally
√ Eco friendly,pollution-free
√ Do not explode under extreme conditions andWeigh less
Application: Power Tool, Lighting equipment,E-bike,E-scooter,UPS,Solar Energy Storage System,Electric Vehicle,E-bus,E-boat,Test &Inspection System,other Electronic Products.
Application :
1) Energy Storage: UPS,Backup,Power Station
2) Intelligent Robots or Smart Robots
3) EV: Electric Scooters,Electric Motorbike
4) Solar System: Solar or Storage Home System,Solar Street Lights
5) General Energy Storage: Backup Power,Digital Products etc...
We have the above certification to help customer to win global market:
North America Certificate: UL
Europe Certificate: CE/ROHS/REACH
Asia & Australia Certificate: PSE/KC/CQC/BIS
Global Certificate: CB/IEC62133/UN38.3/MSDS
If you have any questions,please freely email us for helps.
