1.Product Parameter (Specification)

Technical Parameters:

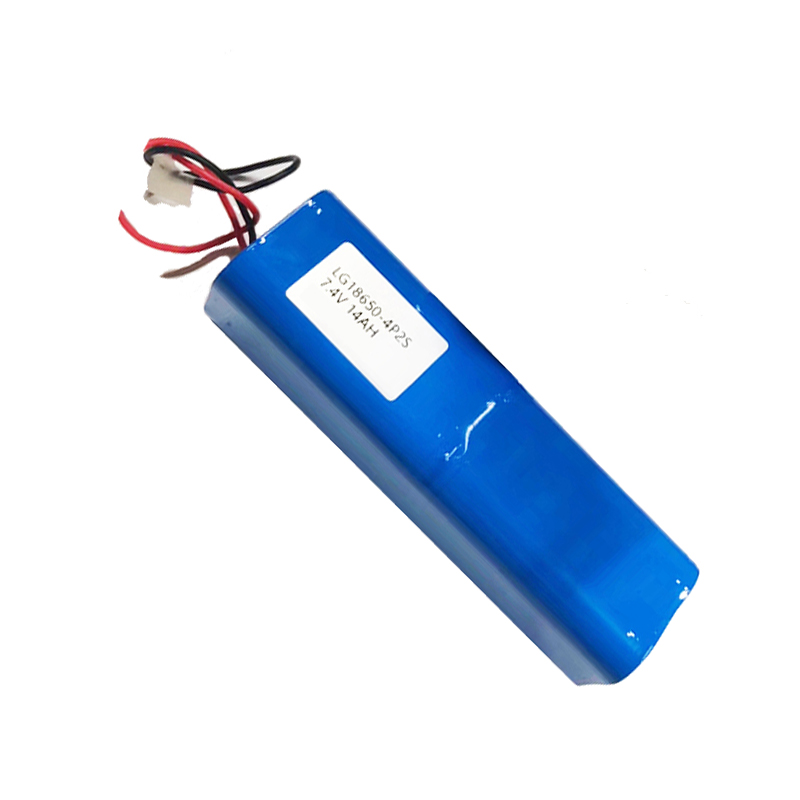

Product Name	4P2S 18650 7.4V 14AH battery for hand held sterilizing gun
Cell Type	ICR18650 3500mAh	Material	Li-ion (NiCoMn)
Charge Protect Voltage	8.40V	Discharge Cut-off Voltage	5.5V
Voltage Range	5.5V~8.40V	Length of Cables	200mm or Customized
Charge Connector	Flexible	Discharge Connector	Customized
Standard Charge Current	0.2C/2.8A	Max Charge Current	7A
Continuous Discharge Current	10A	Peak Discharge Current	10000mA,1mS
Cycle life	500 Times @ 80% DOD	Dimension(MAX)	Length x Width x Height - Customized
Pre-wired	Red=Positive; Black=Negative	Certification	UL,CE,RoHs,UN38.3,MSDS,CB,…
Charge Method	CC/CV	Warranty	1 Year
Application	for hand held sterilizing gun	Weight	500 g
Working Temperature	Charge Temperature: 0℃ to 45℃
	Discharge Current: -20℃ to 60℃
Packing	Professional Li-ion Battery Safe Package under IATA Shipping Request. Each Carton less than 10KGS

2. Optional Li-ion Cell Types

Model	Nominal Voltage (V)	Nominal Capacity (mAh)	Working Temperature (℃)	Maximum Charge Voltage (V)	Discharge Cut-off Voltage (V)	Battery Weight (Approx.)	Measurement (Φ*H)
14500	3.7V	800mAh	-20℃~+60℃	4.2V	2.75V	18.0g	14x50mm
14650	3.7V	1100mAh	-20℃~+60℃	4.2V	2.75V	25.0g	14x65mm
18350	3.7V	900mAh	-20℃~+60℃	4.2V	2.75V	19.0g	18x35mm
18500	3.7V	1500mAh	-20℃~+60℃	4.2V	2.75V	33.0g	18x50mm
18650	3.7V	2000mAh	-40℃~+85℃	4.2V	2.75V	42.0g	18x65mm
18650	3.7V	2200mAh	-20℃~+60℃	4.2V	2.75V	43.0g	18x65mm
18650	3.7V	2500mAh	-20℃~+60℃	4.2V	2.75V	44.5g	18x65mm
18650	3.7V	2600mAh	-20℃~+60℃	4.2V	2.75V	45.8g	18x65mm
18650	3.7V	3000mAh	-20℃~+60℃	4.2V	2.75V	48.0g	18x65mm
21700	3.7V	4200mAh	-20℃~+60℃	4.2V	2.75V	67.0g	21x70mm
26650	3.7V	5000mAh	-20℃~+60℃	4.2V	2.75V	85.0g	26x65mm
32650	3.7V	6500mAh	-20℃~+60℃	4.2V	2.75V	132.0g	32x65mm

3. Feature And Application
√ High energy with high voltage
√ Green energy and pollution-free
√ Customize dimension according to your needs
√ Friendly environmentally
√ Wide operating temperature: -20℃ to +60℃,or -40℃~+85℃
√ Safety and reliable
√ Long cycle lіfe: 80% DOD after 500 times
√ Expected cycle life of a Li-ion in application is about 1,000+ times
√ No memory efficiency,discharge or charge at any time

Application :
POS Machine,Underwater ROV,E-scooter,Headlight,Smart Wearable Devices,GPS Tracker,Electric Toys,Beauty Instruments,Aromatherapy Machines,
LED lights,Quadcopters, Drones ,etc.

We have the above certification to help customer to win global market:
North America Certificate: UL
Europe Certificate: CE/ROHS/REACH
Asia & Australia Certificate: PSE/KC/CQC/BIS
Global Certificate: CB/IEC62133/UN38.3/MSDS
If you have any questions,please freely email us for helps.
